Raspberry Pico WH

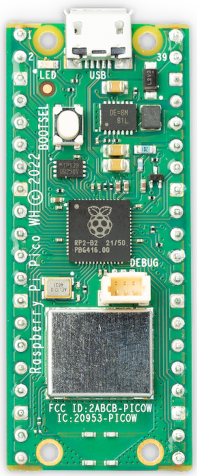

The Raspberry Pi Pico WH board is based on the RP2040 microcontroller, featuring a dual-core ARM Cortex-M0+ processor.

The board includes an Infineon CYW43439 wireless chip providing 2.4 GHz Wi-Fi and Bluetooth connectivity.

The Pico WH is the Raspberry Pi Pico W variant with pre-soldered headers.

IoT-LAB special configuration

In IoT-LAB, the Raspberry Pi Pico WH is connected to a Debug Probe used for remote programming, debugging and serial communication.

• Firmware is remotely programmed through the Debug Probe using the RP2040 SWD interface. The SWD interface is connected to the Pico WH debug interface on pins SWCLK, SWDIO and GND.

• The serial console is connected through UART0 on pins GP0 (UART0 TX) and GP1 (UART0 RX). The serial connection should be configured at 115200 bauds.

Datasheet and documentation

You can find access to the documentation on the Pico microcontroller boards.
